DS3800DGRA

GENERAL ELECTRIC STEAM TURBINE REGULATOR DS3800DGRA

Contact
Us!

Warranty: 3 Year Warranty
Manuals & Datasheets: Request via Email

DS3800DGRA

GENERAL ELECTRIC STEAM TURBINE REGULATOR DS3800DGRA

  • 5.00 (2)
  • Click a star to rate this product

Availability:

In Stock Ships In 3-5 Days


Description

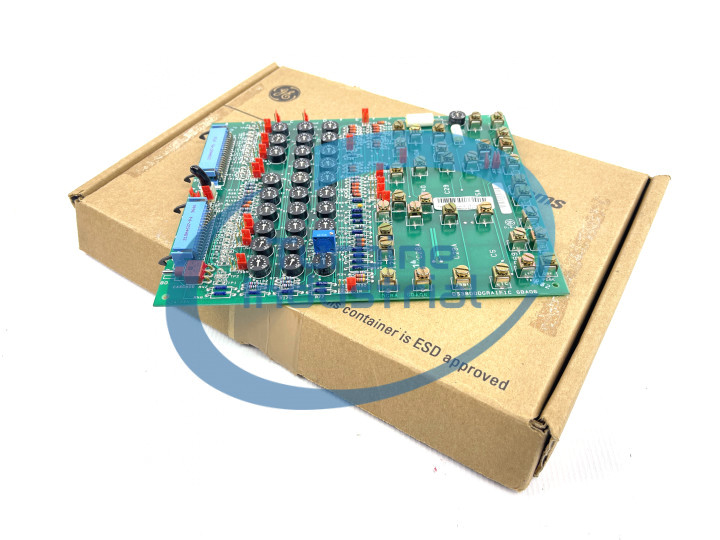

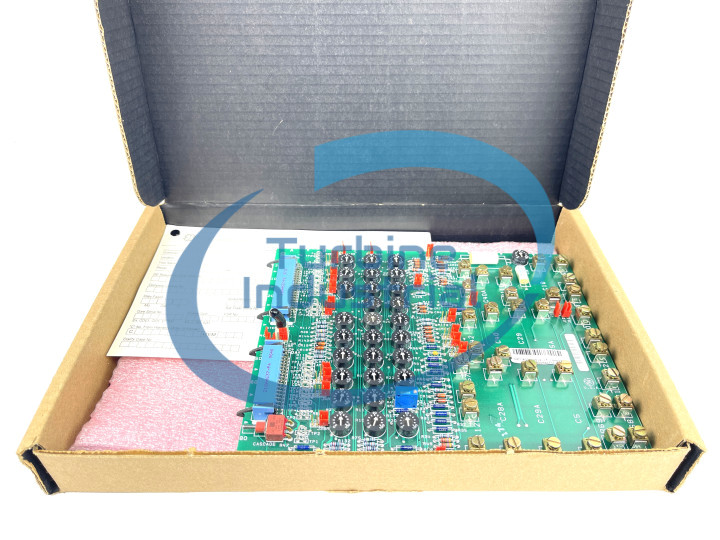

The GE Regulator Turbine Control Board DS3800DGRA is designed for secure and easy installation in the drive. The board features one hole in each corner for installation using screws. The GE Regulator Turbine Control Board DS3800DGRA is populated with 1 trimmer resistor and multiple potentiometers with dial settings. The board is also populated with multiple wire terminals and multiple jumpers.

The GE Regulator Turbine Control Board DS3800DGRA is populated with a restart button. If the board seems to experiencing intermittent processing errors or is suddenly behaving erratically, it is recommended that you first use the restart button to temporarily shut down the processing and give the control signals an opportunity to restart. This might put the control signals back in sequence or otherwise restart processing and resolve any temporary issues. This restart button doesn’t turn off the board so power remains in the board.

The board is populated with 39 wire terminals. The technician can connect wires to the terminals to change the processing configuration. Some of the terminals have an ID that is prefixed with C. The prefix is followed by a numeric value. Other terminals are prefixed by R. The prefix is followed by a numerical value. For example, R70, R75, C29, and C40A are wire terminal IDs found on the board.

The jumper on the board are all 3-pin jumpers. That is, the jumper covers 2 of the 3 pins to define a configuration setting. The 2 pins that are covered are connected to create a signal. The signal creates the configuration setting.

Purchase

Please give us a call or send us an email for pricing on New Surplus and Reconditioned replacements that we have in our inventory. Our lead times are short, stock is excellent, and pricing is competitive. We hope to be your go-to supplier for all GE Turbine replacement boards and controls.

Exchange

We conveniently offer an exchange program that allows you to recycle your old board and receive an up-front discount on a replacement. Please ask about our exchange credit program if you have a defective board to exchange with the purchase of a new or reconditioned replacement. We ask that the defective board is sent in within 30 days of the purchase.

Repair

We offer repair on most GE Turbine boards we sell. Although we usually have replacements available, we recognize that customers may prefer to have their board repaired. Our repair program allows us to offer a lower cost alternative to replacement.
